Piano accessories piano tuning tools stop tools stop sound belt pure wool 1.2 meters long

Piano accessories piano tuning tools stop tools stop sound belt pure wool 1.2 meters long
  • Продавецlevellawns.us
  • Список ценUS $25.60piece
  • Продажная ценаUS $25.60piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (990)

Oписание продукта

Hopping Code Car PKE Security Alarm System Long Push Button With Shock Sensor Remote Engine Start Stop Passive Keyless Entry

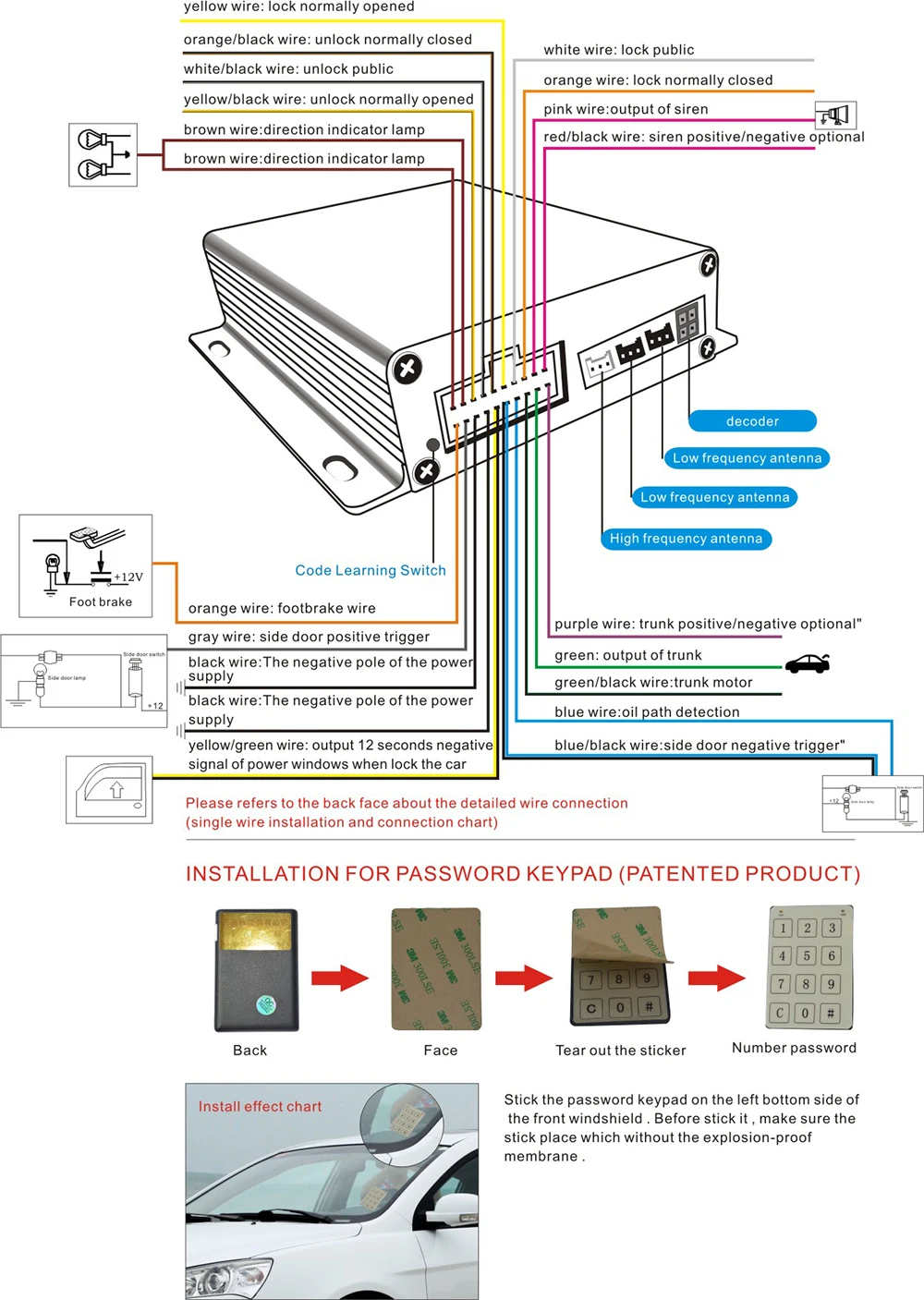

IMPORTANT!!! This is a new upgraded PKE Car Alarm System with Vibration Trigger Warning function. Please refer to the Wiring Diagram when you try to install this alarm in your car. Please DO NOT make any mistake for connect HIGH FREQUENCY ANTENNA & SHOCK SENSOR, otherwise the main unit will be burnt out. We suggest you\'d better to ask a professional auto technician for help you to install this alarm in your car. If anywhere need our help, please feel free to contact us.



This is a PKE car alarm system, when car owner approach the car 2-3 meters, system will enter into disarming status automatically and auto unlock car doors; when car owner walk away the car 2-3 meters, system will enter into arming status automatically and auto lock car doors. If your remote control was lost, you can disable it to protect your car and control it by the password keyboard operation. If your lost your remote control or damaged it, you can get into your car and drive your car away by input the correct password that you set.

Main Function Features Description
Arming / disarming
Lock / unlock
Silent arming
Vibration trigger warning
Car locating
Push button to start / stop car engine
Passive keyless entry
PKE on / off by remote control
Remote start / stop car engine
Power off memory
Valet mode (car washing / repair mode)
Door unlock well warning
Automatic central door locking
Intelligent anti-car jacking
Remote trunk release
Intelligent power saving sleep mode
Emergency override
Manual lock and unlock
Code learning new remote control
Warning the door is open whiling driving
Warning the alarm has been triggered
Password reset
Remote control disable
Automatic windows close (need windows closer module)
Acousto optical anti-theft or multi-anti-theft
Unlock and emergency start via touch password
Enter the password though the glass outside the car with touch clicking


NOTES: Because our freight forwarder CAN NOT accept any package with battery inside to overseas by air, so we will take out the batteries from remote controls before shipment. Buyer should buy batteries for the 2 remote controls after received products. The battery model is CR2032, very easy to buy it in retail stores or supermarket. Please tell us if you have any further question. We answer most questions in less than 12 hours.

FRIENDLY REMINDER: If your original remote control(s) with a “start chip” inside, you need to buy a extra bypass module. Otherwise you can not use the remote engine start function & push button start function. Any copied keys also can not start your engine if you not install a bypass module. If you are not sure whether there is a “start chip” in your original remote control(s), we suggest you can ask for help from your car vendor or a professional auto technician. if necessary, you can buy the bypass module from follow link:


DSC05606DSC05607DSC05608DSC05609DSC05610DSC05612DSC05613
DSC05614DSC05615DSC05616
DSC05617
DSC05605
Button Introduction
Full black laser original plant start button with lamp, high quality double push-button contact hardware switch.
With Tamper-proof password start function. Build-in 40A automobile start subassembly, 100000 times popup test.
After the blue light of start button light up, can follow ignition and other operation.
If have no need to ignite, no need to put on the brakes.
Press start button first time: open ACC switch
Press start button second time: open ON switch
Press start button third time: close all switch

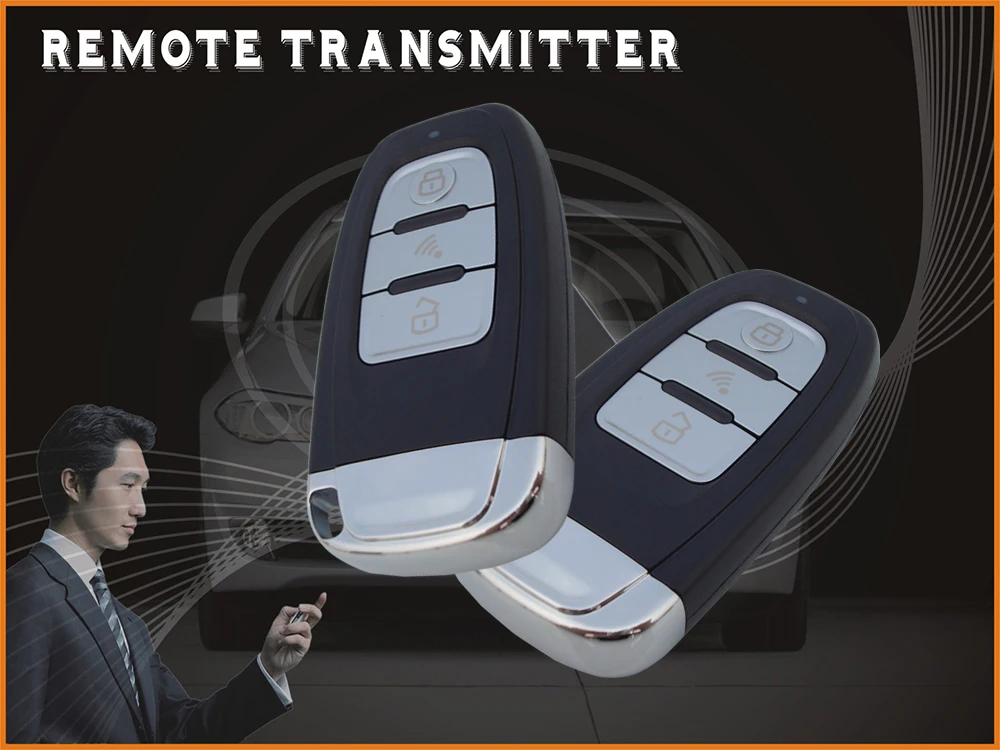

Intelligent induction remote control
Present a couple leather case (wear-resisting and durable real cowhide).
The surface of rubber paint processing.
Ultra thin and super light remote control case
Beautiful and convenient spare key piece



Operating Instructions
1-1
Button , short press one time, PC speaker sings a sound, direction light flash 3 times, door lock and into security status. At the same time close PKE induction system.
Sound alarm settings: Remove security state, open ON switch, long press 3-5 seconds, direction light flash 3 times, horn sings a sound, this is the setting of sound alarm.
Silence alarm settings: Remove security state, open ON switch, long press , direction light flash 3 times, horn not sings, this is the setting of silence alarm.
1-2
Button, short press one times, direction light long light 1 times, door unlocking, remove security state, At the same time open PKE induction system.
Open trunk function: Remove security state, short press button  3 times (or long press 3 seconds), direction light flash 3 times, open trunk.
1-3
Button “P”: In any conditions, short press button”P” 1 times, searching car function.
1-4
Button “P”: In the security state (the remote control is not in the induction area) short press button P 3 times (or long press 3 seconds), system for long-distance remote start car.(When remote start car, car must pull the hand brake and setting neutral position)



DSC05625



DSC05626



DSC05627



DSC05628



DSC05629



DSC05630


FRIENDLY REMINDER: If your car not equipped Car Windows Closer Module or Electric Power Window Kits, you can not use the windows close automatically function when you leave your car. If you are not sure whether your car equipped Car Windows Closer Module or Electric Power Window Kits, we suggest you can ask for help from your car vendor or a professional auto technician. if necessary, you can buy the Car Windows Closer Module or Electric Power Window Kits from the follow hyperlinks.



Password Keyboard
Factory real object—Strip off import 3M slick paper--- Stuck on the front windshield (The customer feel convenient location)
Feature:
The password keyboard is match with PKE system, the function is to emergency usage. When lose the remote control case and running down the battery, remove anti-theft system through password keyboard.
Having no need to using remote, can setting car anti-theft system by password keyboard. After setting car anti-theft, remove car anti-theft only by password keyboard. Car remote can not operate.



Setting Password
Remove security state, open door, put on foot brake, short press  1 times, direction light flash 1 times, loosen foot brake, password keyboard flash blue light, can setting password. Password number is 6 digits, horn sings 3 times when setting password successfully. (Press button ”C” to delete error password and setting password second times)



Input Password
Please input in order: C+0+#, password keyboard bright out, turn into setting password procedure, only 5 times to try, after 5 errors in a row, try again after 1 hour later.
Product fittings
TOP
Button fittings
High-frequency antenna
Key link line
Keyboard link line
BOTTOM
Door control box
20P link line
Private car plug, CAN-BUS, big 6P wiring harness



DSC05618DSC05619DSC05620DSC05621

Statement
Offer you the authenticity of products. All the pictures are real. No processing through the computer.
Intelligent computer host:
Left:
20P wiring harness connector
Induction antenna connect low frequency
Password keyboard connector
Right
Big 6P wiring harness connector

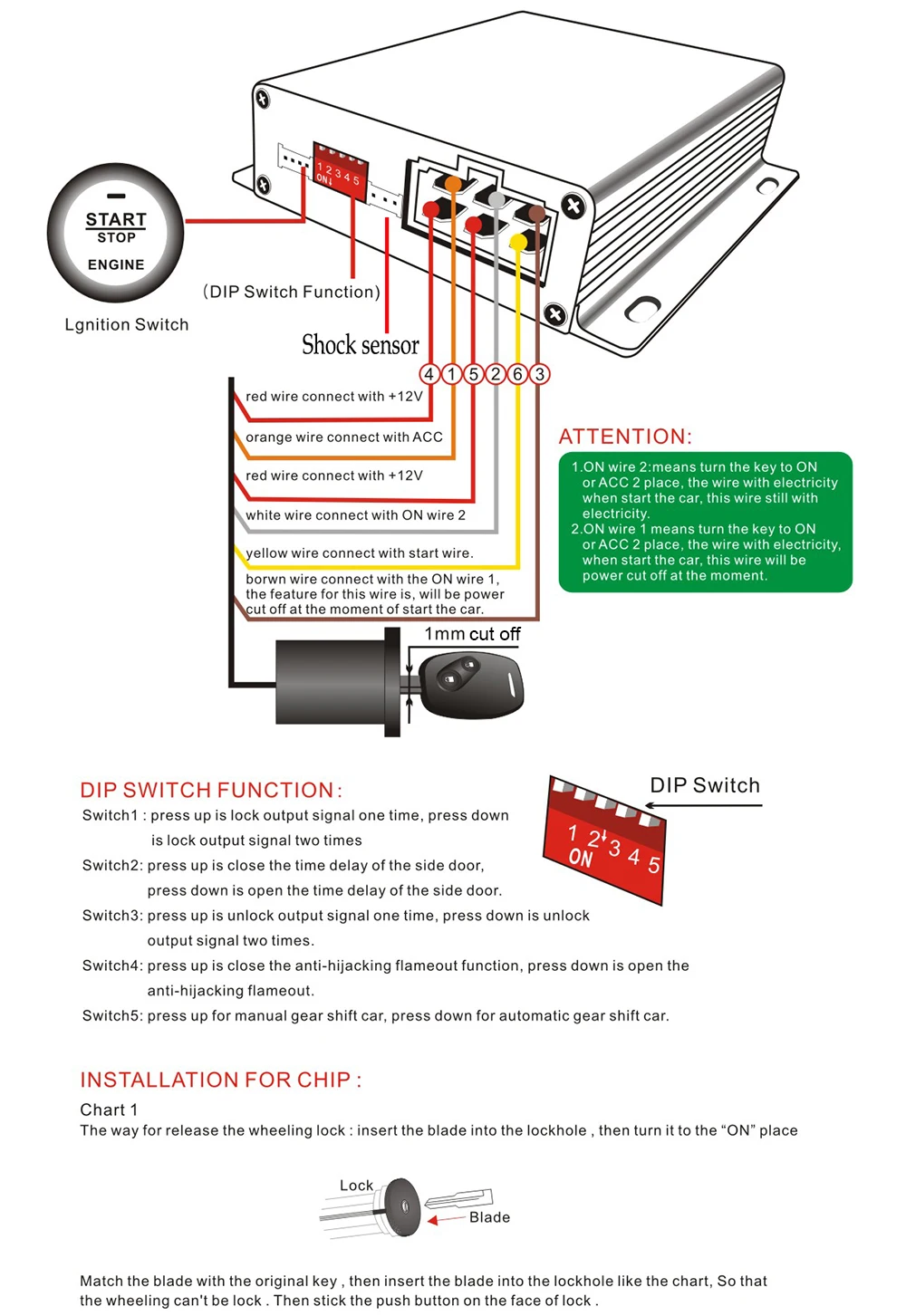

DIP switch
Start switch connector
Take down dust cover



Low Frequency Antenna
5 meter antenna: install top left corner of back windshield
2 meter antenna: install intermediate of front windshield
Two antenna must be install to T shape



DSC05631
